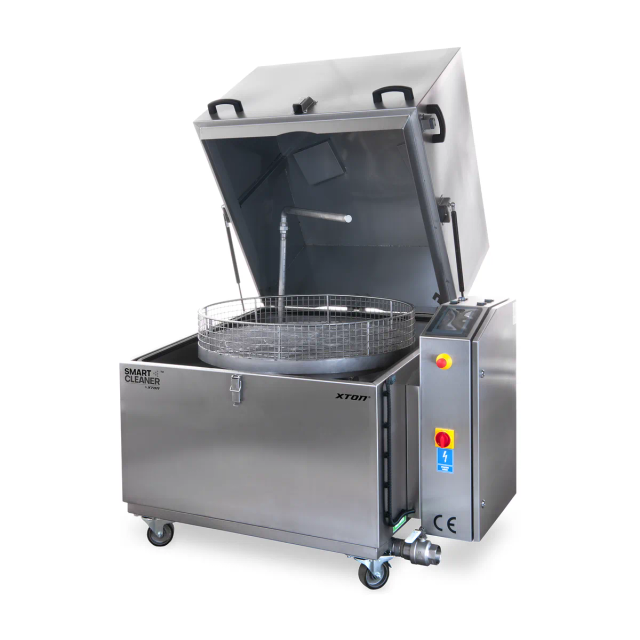

Smart Cleaner™ 850
A compact version of the rotating-basket washer, for workshops with a lower volume of parts looking for an automatic cleaning cycle in a smaller footprint.
Automatic washing cycle with a rotating basket holding up to 300 kg, in a smaller footprint than the SC1000. The liquid is filtered and reused, reducing water and chemical consumption, while the dedicated oil separator keeps it clean for longer.
The lid opens pneumatically and the touch-screen panel runs automatic washing programmes with adjustable cycle length and spray pressure, so the machine adapts to different batches of parts without manual intervention.
Equipment
- liquid level and temperature sensors
- dual liquid filtration system
- top-loading rotating basket, up to 300 kg load
- heated tank with a capacity of up to 200 l
- adjustable swivel feet
- dedicated disc oil separator, keeping the tank liquid free of oil residue
- touch-screen control panel
- automatic washing programmes, cycle length 0–240 min
- programmable spray pressure, 3–4 bar
- XPOWER Active Cleaner BA starter kit (low-foam alkaline detergent with corrosion inhibitor)
- pneumatically opening lid
- heavy-duty operator gloves
Optional extras:
- thermal insulation for the liquid tank
Technical parameters
| Weight | 185 kg |
|---|---|
| External dimensions – chamber open | 135 × 160 × 194 cm |
| External dimensions – chamber closed | 135 × 108 × 141 cm |
| Chamber dimensions | 85 × 85 × 55 cm |
| Basket diameter | 85 cm |
| Working space above the basket | 50 cm |
| Maximum basket load | 300 kg |
| Cycle time programming | 0–240 min |
| Heated liquid tank | 200 l |
| Usable capacity (to oil separator level) | 200 l |
| Operating temperature | up to 80 °C |
| Supply voltage | 3 x 400 V |
| Frequency | 50 Hz |
| Power socket | 32 A |
| Maximum power | 9 kW |
| Spray pressure | 3–4 bar |
| Washing pump flow rate | up to 250 l/min |
| Filtration stages | 2 |
| Filtration grade | 50–150 µm |
| IP protection rating | IP54 |
| Safety features | temperature sensor, emergency stop, liquid level sensor, door-open sensor |
| Declaration of conformity | CE, ISO 9001, ISO 14001 |
