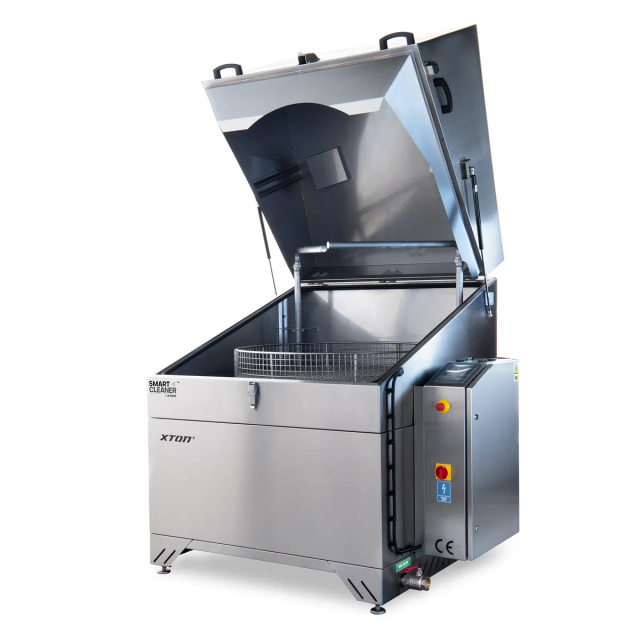

Smart Cleaner^™ 1000

Rotating-basket washer for automatic batch cleaning of parts, designed for workshops that process engine components and mechanical parts on a continuous basis.

Automatic washing cycle with a rotating basket holding up to 300 kg. The liquid is filtered and reused, reducing water and chemical consumption, while the dedicated oil separator keeps it clean for longer.

The lid opens pneumatically and the touch-screen panel runs automatic washing programmes with adjustable cycle length and spray pressure, so the machine adapts to different batches of parts without manual intervention.

Buy now

Equipment Technical parameters Master Box^™

Equipment

liquid level and temperature sensors
dual liquid filtration system
top-loading rotating basket, up to 300 kg load
heated tank with a capacity of up to 300 l
adjustable swivel feet
dedicated disc oil separator, keeping the tank liquid free of oil residue
touch-screen control panel
automatic washing programmes, cycle length 0–240 min
programmable spray pressure, 3–4 bar
XPOWER Active Cleaner BA starter kit (low-foam alkaline detergent with corrosion inhibitor)
pneumatically opening lid
heavy-duty operator gloves

Optional extras:

thermal insulation for the liquid tank

Technical parameters

Technical parameters
Weight	200 kg
External dimensions – chamber open	160 × 142 × 250 cm
External dimensions – chamber closed	160 × 120 × 165 cm
Chamber dimensions	100 × 100 × 60 cm
Basket diameter	100 cm
Working space above the basket	60 cm
Maximum basket load	300 kg
Cycle time programming	0–240 min
Heated liquid tank	300 l
Usable capacity (to oil separator level)	200 l
Operating temperature	up to 80 °C
Supply voltage	3 x 400 V
Frequency	50 Hz
Power socket	32 A
Maximum power	9 kW
Spray pressure	3–4 bar
Washing pump flow rate	up to 250 l/min
Filtration stages	2
Filtration grade	50–150 µm
IP protection rating	IP54
Safety features	temperature sensor, emergency stop, liquid level sensor, door-open sensor
Declaration of conformity	CE
