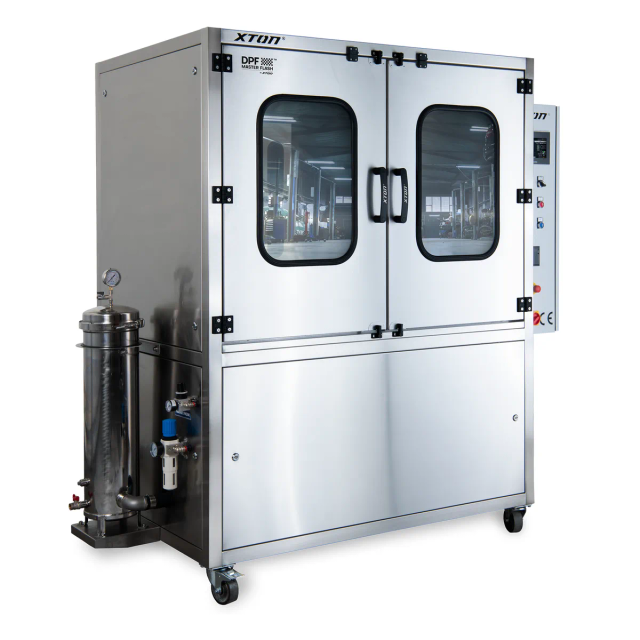

DPF Master Flash™ Professional
Advanced machine for cleaning and regenerating DPF / FAP / GPF filters and catalytic converters, designed mainly for cars and vans.
An advanced tool for cleaning and regenerating DPF / FAP / GPF filters and catalytic converters, aimed mainly at cars and vans. It features a 185-litre tank, a water pump with a flow rate of up to 133 l/min and an integrated system for drying the filter once washed. The complete cleaning process restores the filter’s factory properties by up to 99%.
The machine’s interior is protected with AISI 304 and AISI 316 stainless steel. The entire cleaning process runs in a closed circuit, using the proven hydrodynamic method combined with the specific DPF Cleaner Extra Power chemistry, ensuring high performance and effectiveness. The machine can measure the filter’s dry contamination level via a back-pressure test in mbar, and dry it in a range of 70 to 100 °C. Once regeneration is complete, a final back-pressure measurement is taken and confirmed with a printout for the customer.
Manufacturer warranty of 12 months (extendable to 24, 36 months)
Equipment
- 7" colour touchscreen
- remote machine control via mobile app
- sensors for liquid level and temperature, air temperature, pressure, door opening, fault and phase sequence
- emergency-stop, door limit-switch, fault and phase-sequence safeguards
- filter contamination measurement system
- AISI 316 stainless-steel chamber
- extended 3-stage filtration system
- two heating elements
- integrated drying in a range of 70 to 100 °C
- cooling for the drying system
- built-in thermal parameter printer
- Ethernet controller for remote diagnostics
- set of DPF / FAP / GPF / KAT / SCR adapters
- consumables starter kit (filters + 2 l of XTON® DPF Cleaner Extra Power detergent)
- liquid tank of up to 185 l
- 12-month manufacturer's warranty (extendable to 24 or 36 months)
- marketing materials included with every machine
Optional extras:
- automatic bidirectional filter cleaning
- second liquid circuit with additional pump
- thermal insulation for the liquid tank
- automatic liquid-level top-up
- automatic chemical dosing
- Quick-X quick filter-mounting system
- EURO5 and EURO6 adapters
Technical parameters
| Weight | 600 kg |
|---|---|
| External dimensions | 210 × 95 × 215 cm |
| Chamber dimensions | 140 × 69 × 107 cm |
| Heated liquid tank | 185 l |
| Tank thermal insulation | No |
| Automatic detergent dosing | No |
| Automatic water refill | No |
| Thermal parameter printer | Yes |
| Working pressure | 6–8 bar (87–116 psi) |
| Supply voltage | 3 x 400 V |
| Maximum power | 12 kW |
| Frequency | 50 Hz |
| Water connection (inlet) | 1/2" |
| Water connection (drain) | 6/4" |
| Air connection | pneumatic quick coupling DN7.2, male |
| Ambient temperature | 5–35 °C |
| Operating noise level | up to 70 dB |
| Liquid temperature | adjustable from 30 to 70 °C |
| Drying temperature | adjustable from 70 to 100 °C |
| Optimal operating temperature | 38 °C |
| Pressure hose diameter | 6/4" |
| Filtration pump flow rate | up to 133 l/min |
| Filtration stages | 3 |
| Filtration grade | 5–100 µm |
| Airflow | up to 390 m³/h |
| Regeneration method | automatic, unidirectional |
| Contamination measurement system | mbar |
| Safety features | temperature sensor, pressure sensor, door-open sensor, emergency stop, liquid level sensor, phase loss, phase sequence |
| Declaration of conformity | CE |
