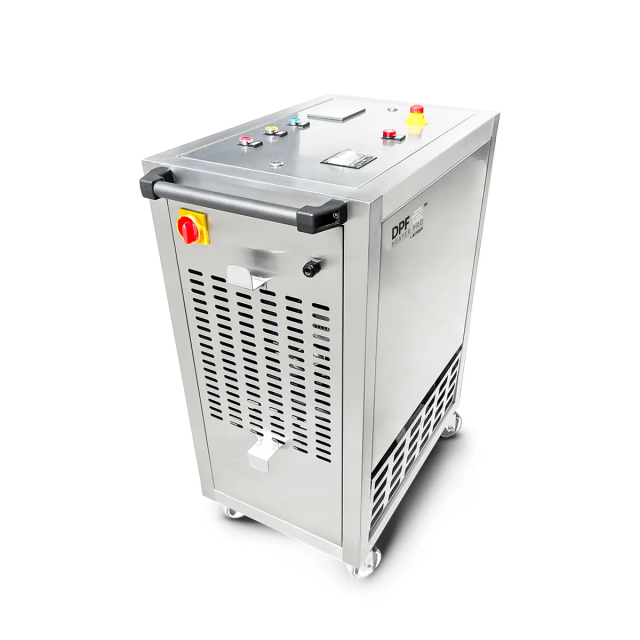

DPF Heater Pro Plus™
A dedicated drying unit for all types of particulate filters and catalytic converters, designed as a complement to cleaning machines that lack their own drying system.
A unit dedicated to drying all types of particulate filters and catalytic converters, built entirely from AISI 304 stainless steel and AISI 316 acid-resistant steel. It features an integrated measurement system and can dry at temperatures of up to 130 °C using a side-channel blower. The built-in thermal printer lets you print out the contamination readings obtained.
It is the ideal complement for a particulate-filter cleaning machine that has no drying system of its own, such as the DPF Master Flash Standard.
Manufacturer warranty of 12 months
Equipment
- independent operation from the regeneration machine
- optimises the filter regeneration process
- low drying cost
- quality confirmed via printout of the measured parameters
- Camlock quick filter-mounting system
- adapters for heavy-duty vehicles
- fully automated drying process
Technical parameters
| Weight | 100 kg |
|---|---|
| External dimensions | 51 × 92 × 114 cm |
| Thermal parameter printer | Yes |
| Supply voltage | 3 x 400 V |
| Maximum power | 7.5 kW |
| Frequency | 50 Hz |
| Ambient temperature | 5–35 °C |
| Operating noise level | up to 70 dB |
| Drying temperature | adjustable from 70 to 130 °C |
| Pressure hose diameter | 6/4" |
| Airflow | up to 390 m³/h |
| Safety features | pressure sensor, emergency stop |
| Declaration of conformity | CE |
